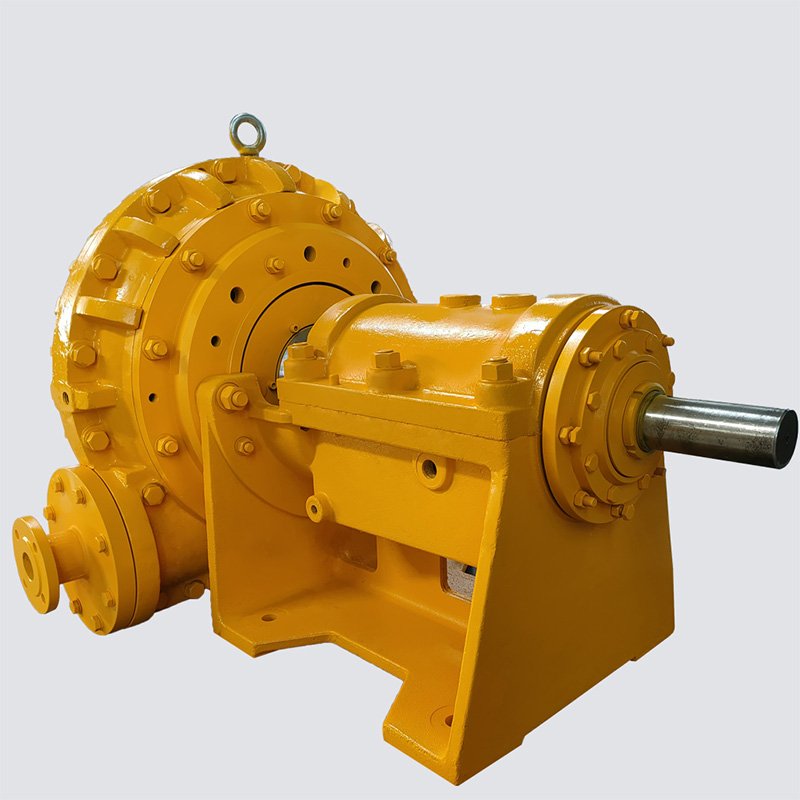

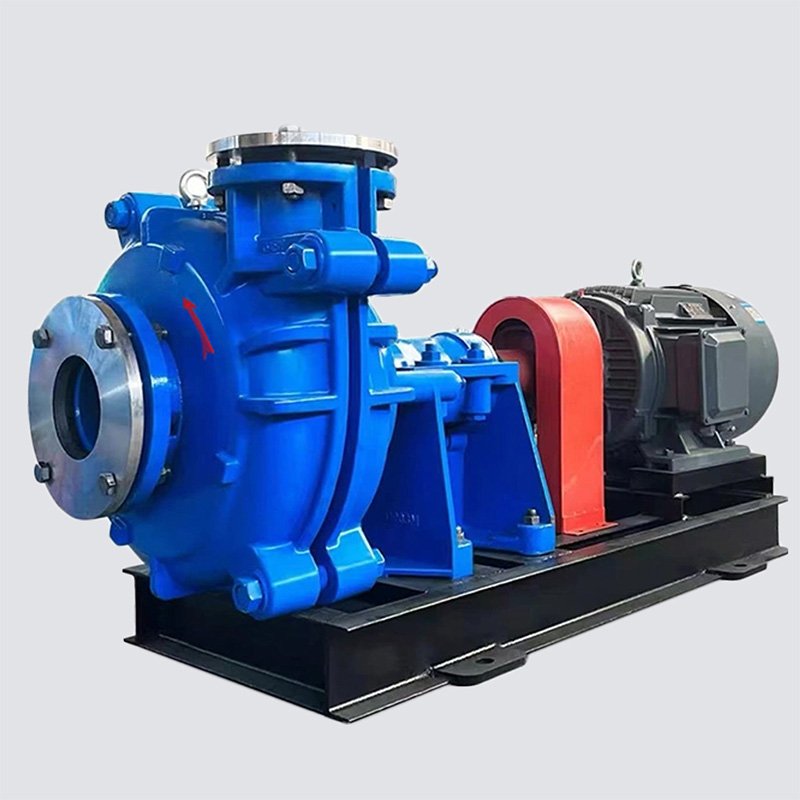

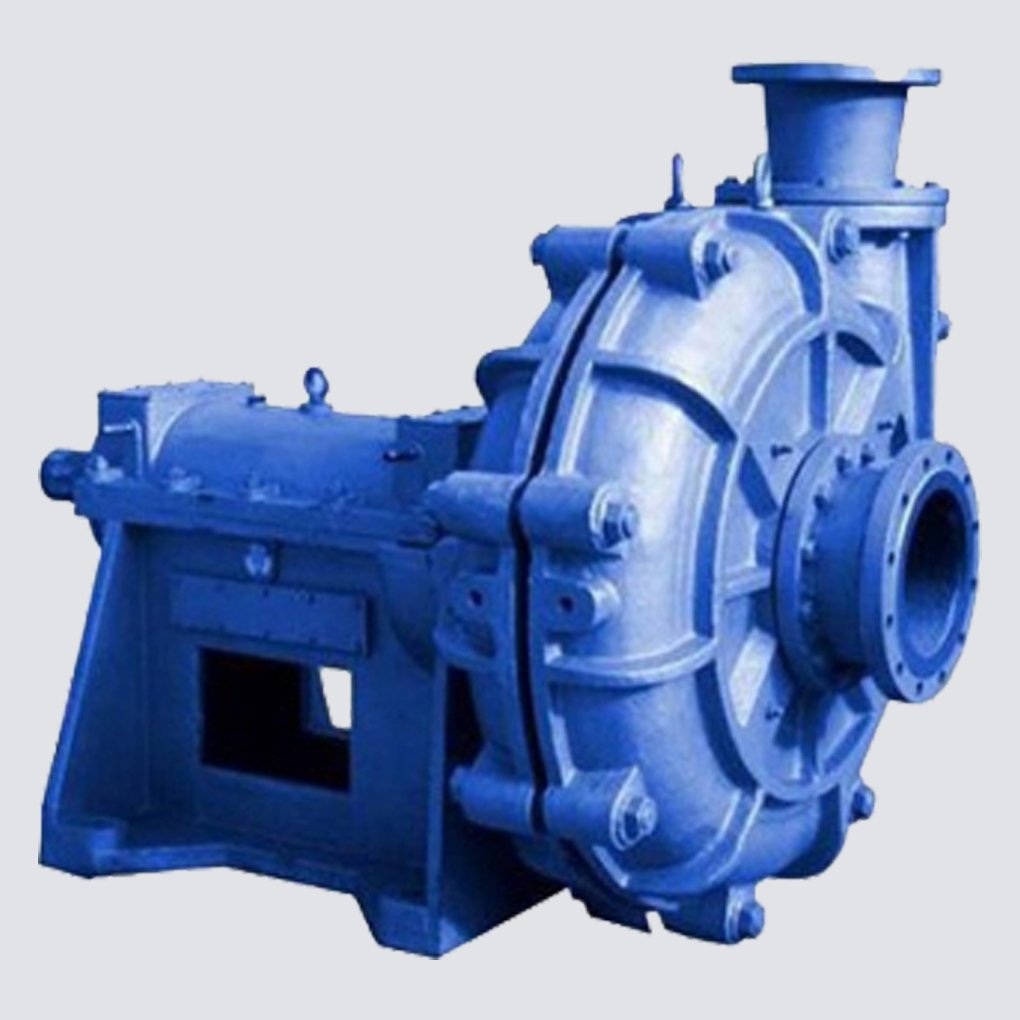

YOUNAI's Advanced Slurry Pumps
- Universal models with highly interchangeable spare parts for lower spare cost.
- Maximum abrasion and corrosion resistance for conveying solid-liquid mixtures.
- A complete product line, from light-duty to heavy-duty slurry pumps.
- Wide application across chemical, metallurgy, mineral processing, and thermal power plants.
- Material options range from wear-resistant metallic alloys to silicon carbide ceramics.
- Heavy-duty bearing unit with grease or oil lubrication.

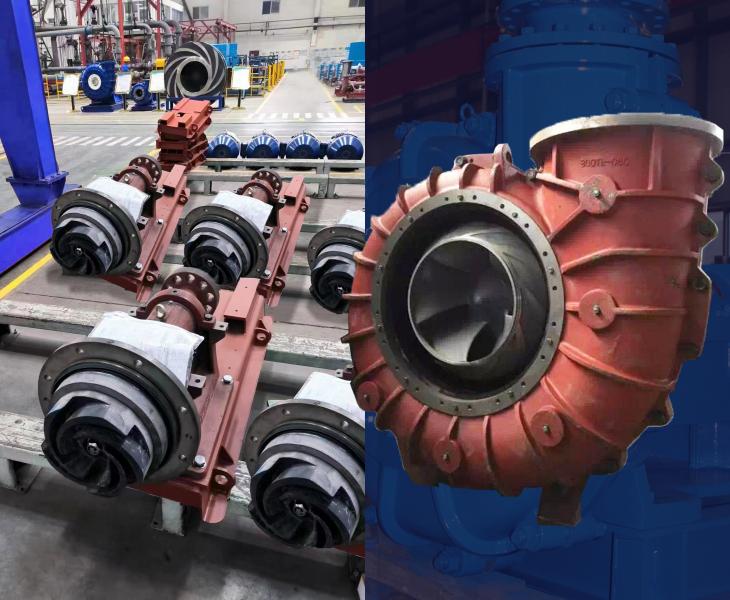

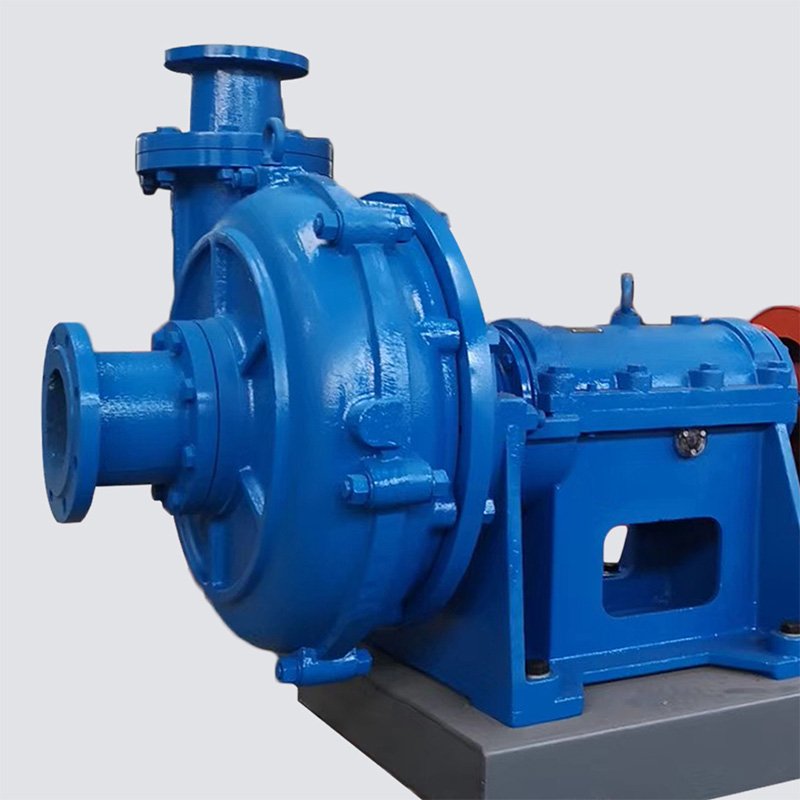

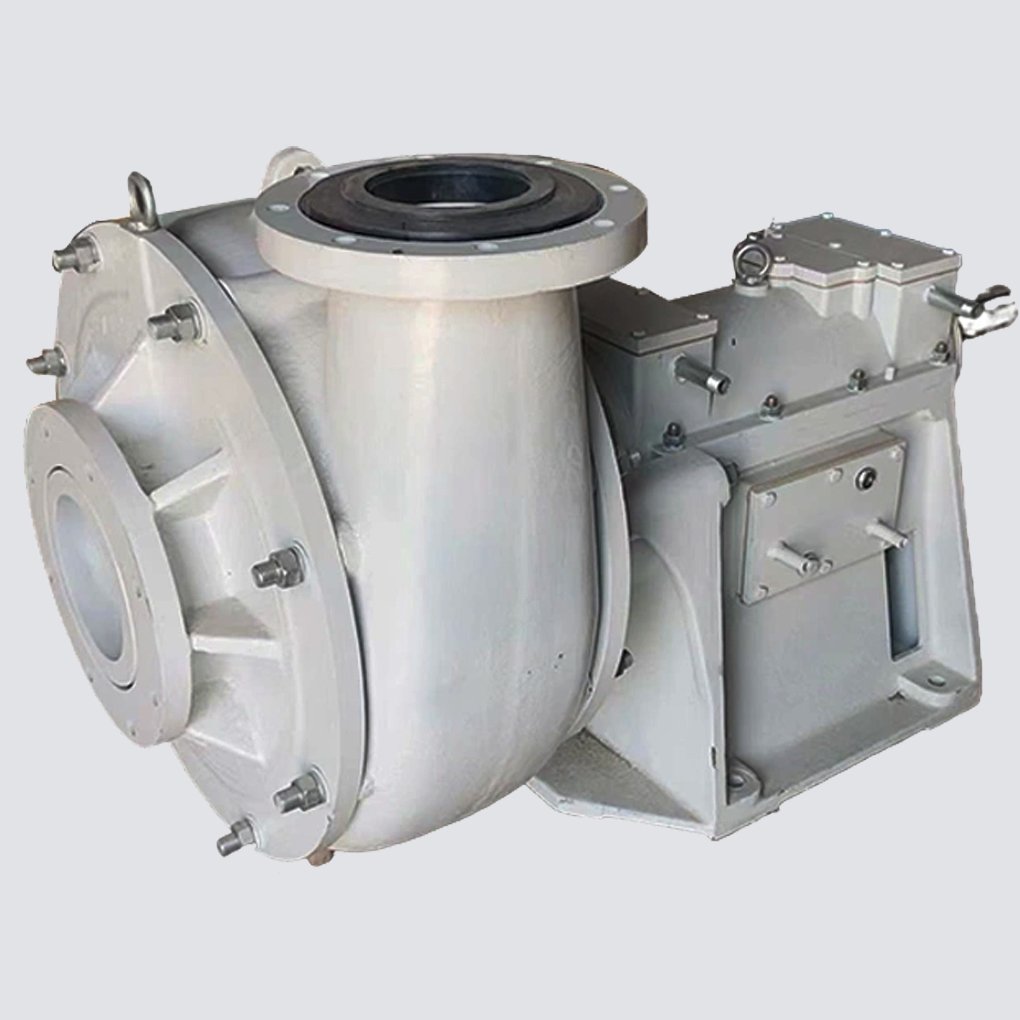

Superior Corrosion & Abrasion Resistance—Slurry Pumps with Silicon Carbide Ceramic
YOUNAI slurry pumps with silicon carbide ceramic, also known as ceramic slurry pumps, are engineered for high reliability and durability in demanding applications. Manufactured from high-hardness silicon carbide ceramic, they deliver exceptional resistance to abrasion, corrosion, and high temperature. This high-hardness lining ensures extended service life and maintains optimal performance in the most challenging slurry-handling conditions.
Ceramic slurry pumps serve in chemical, coal, and thermal power plant fields. Thanks to their long lifetime design, they maintain reliable, long continuous operation of full systems and solve the challenging performance trade-off between chemical pumps and slurry pumps.

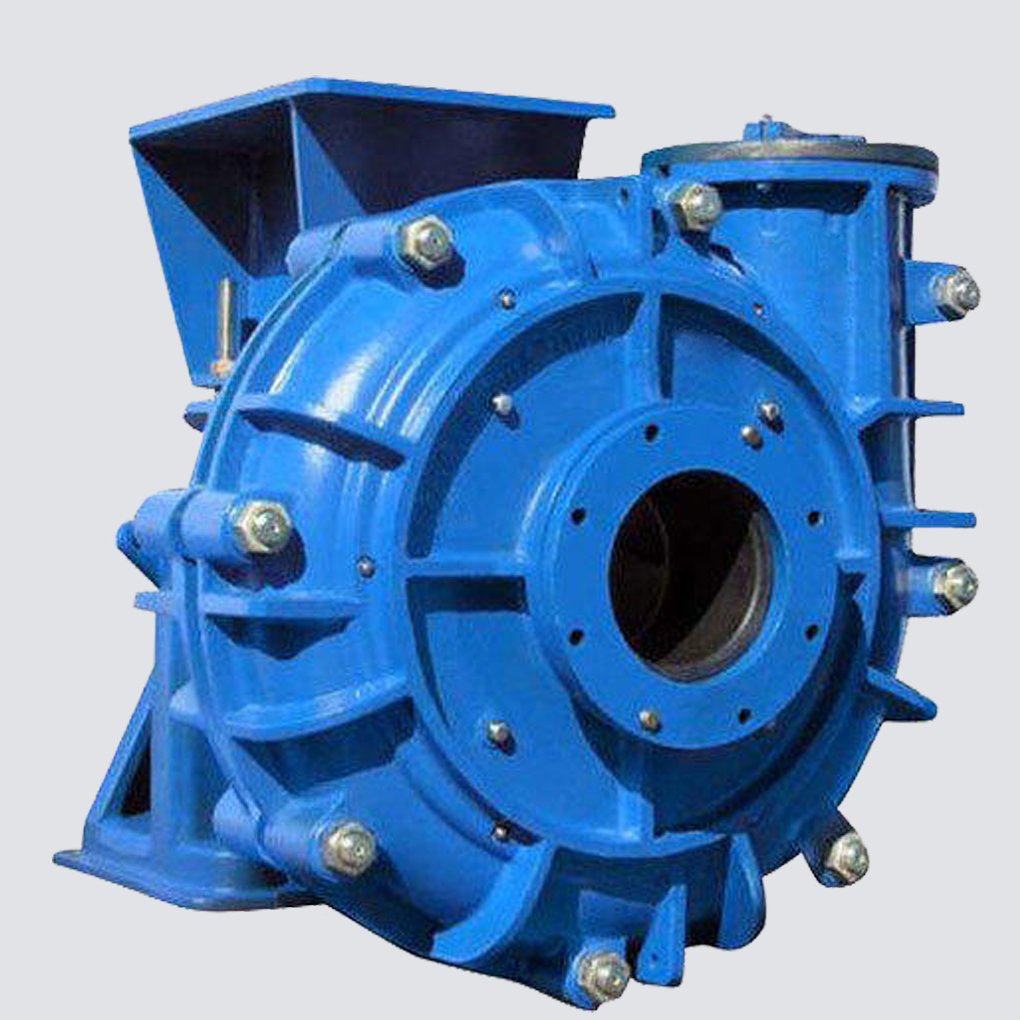

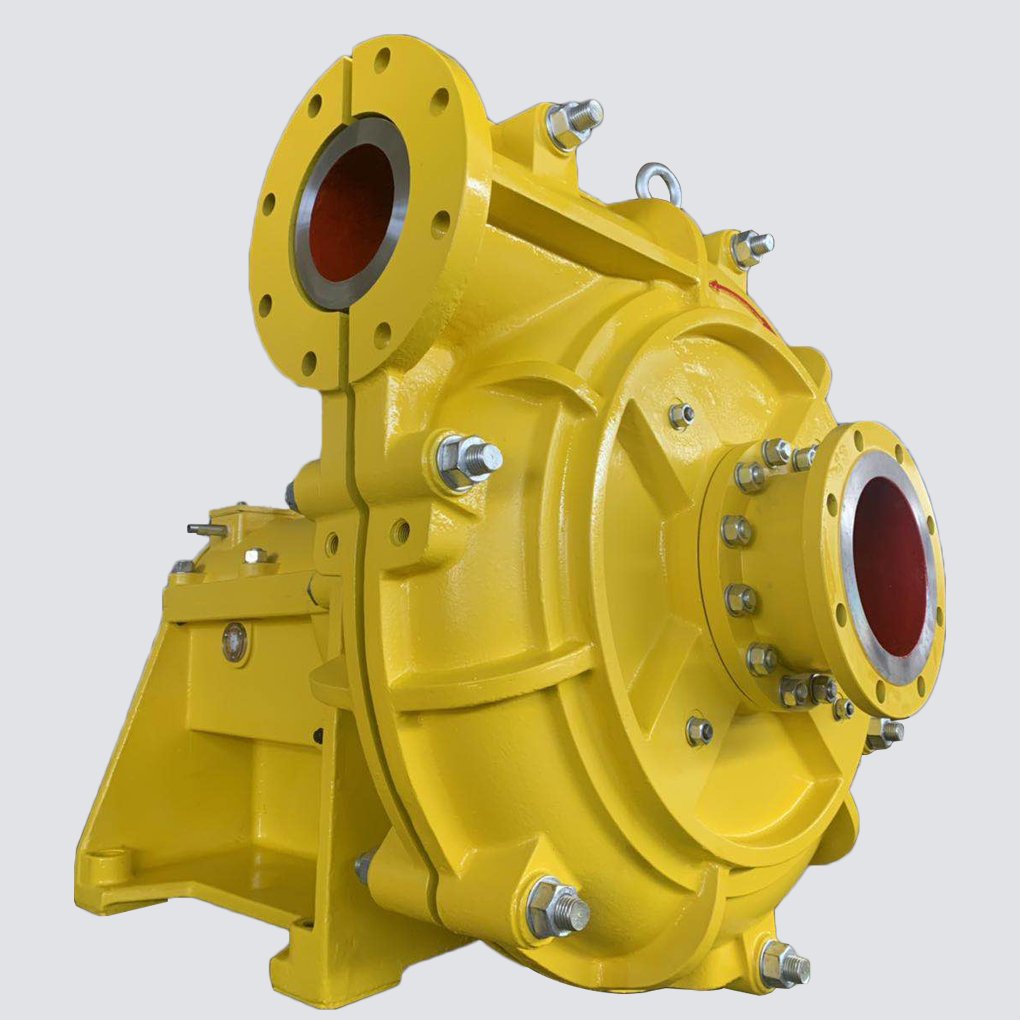

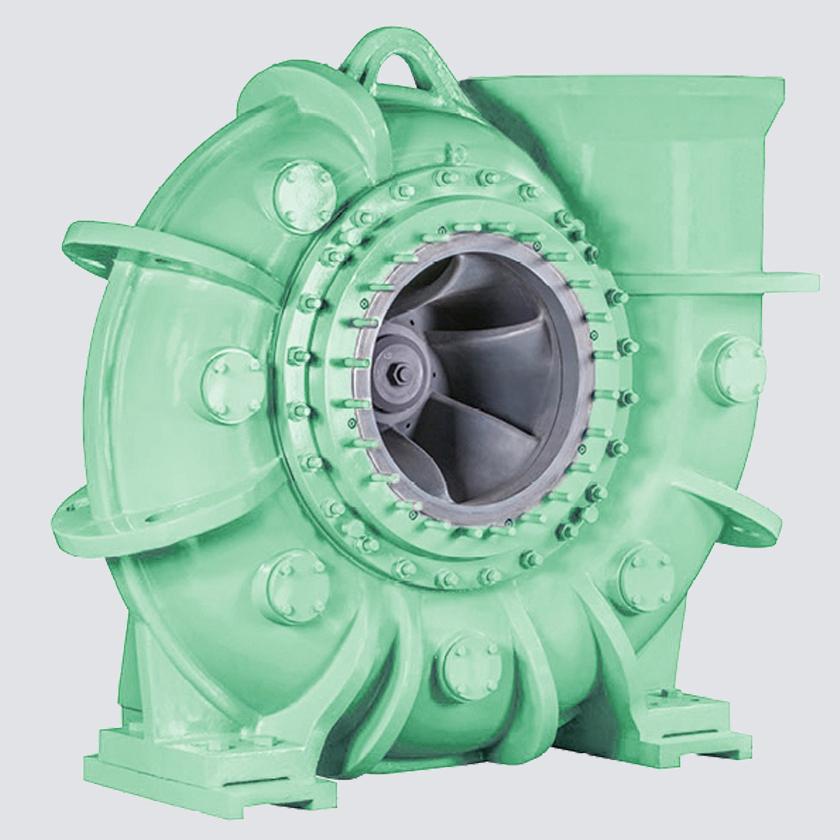

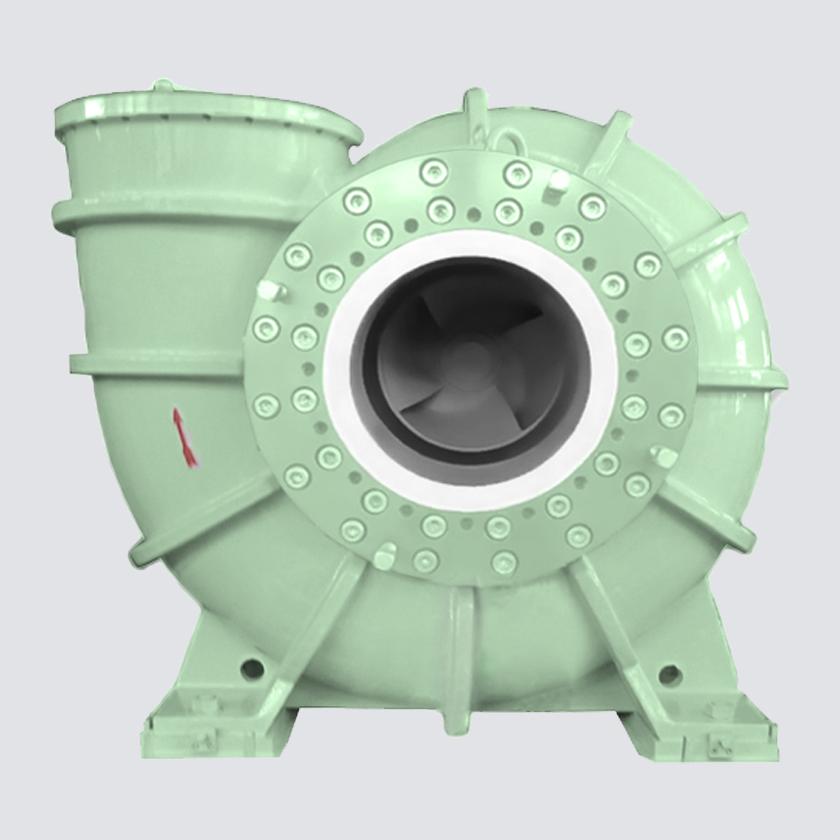

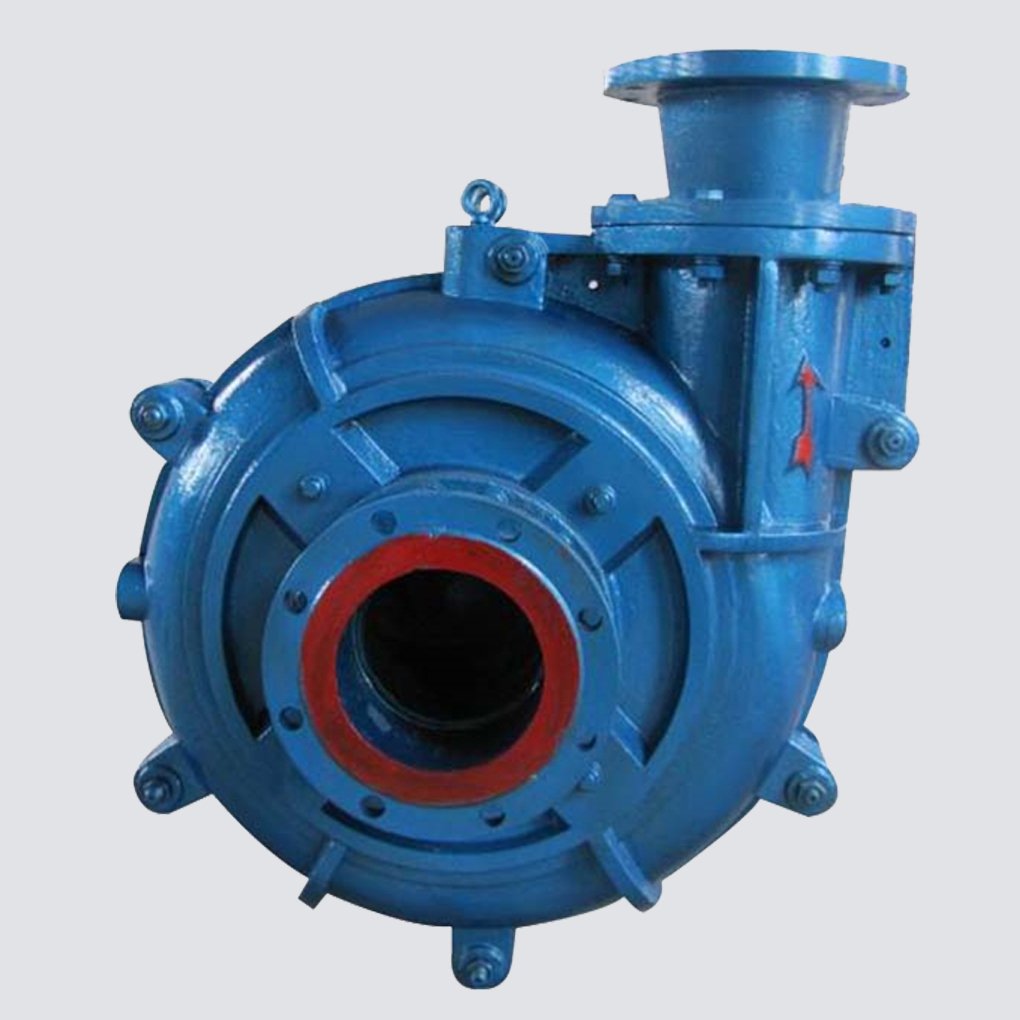

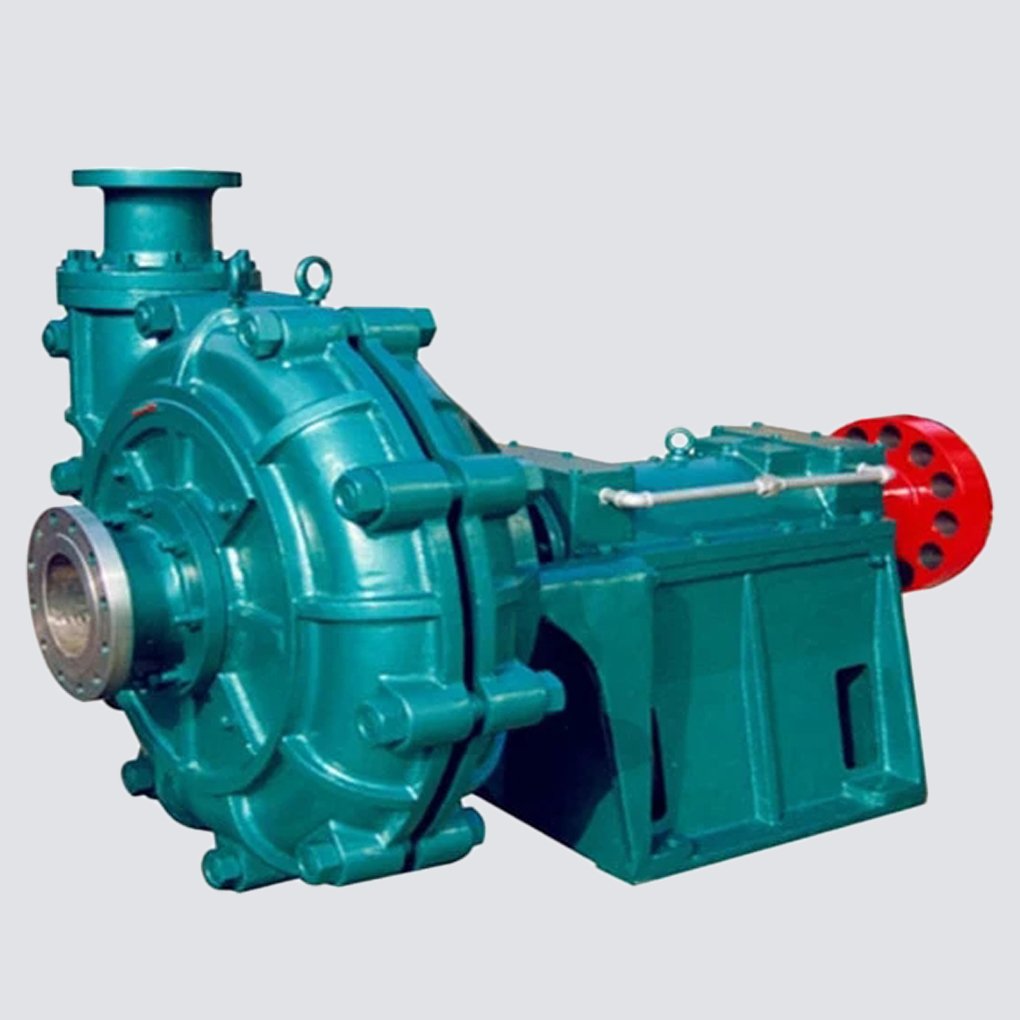

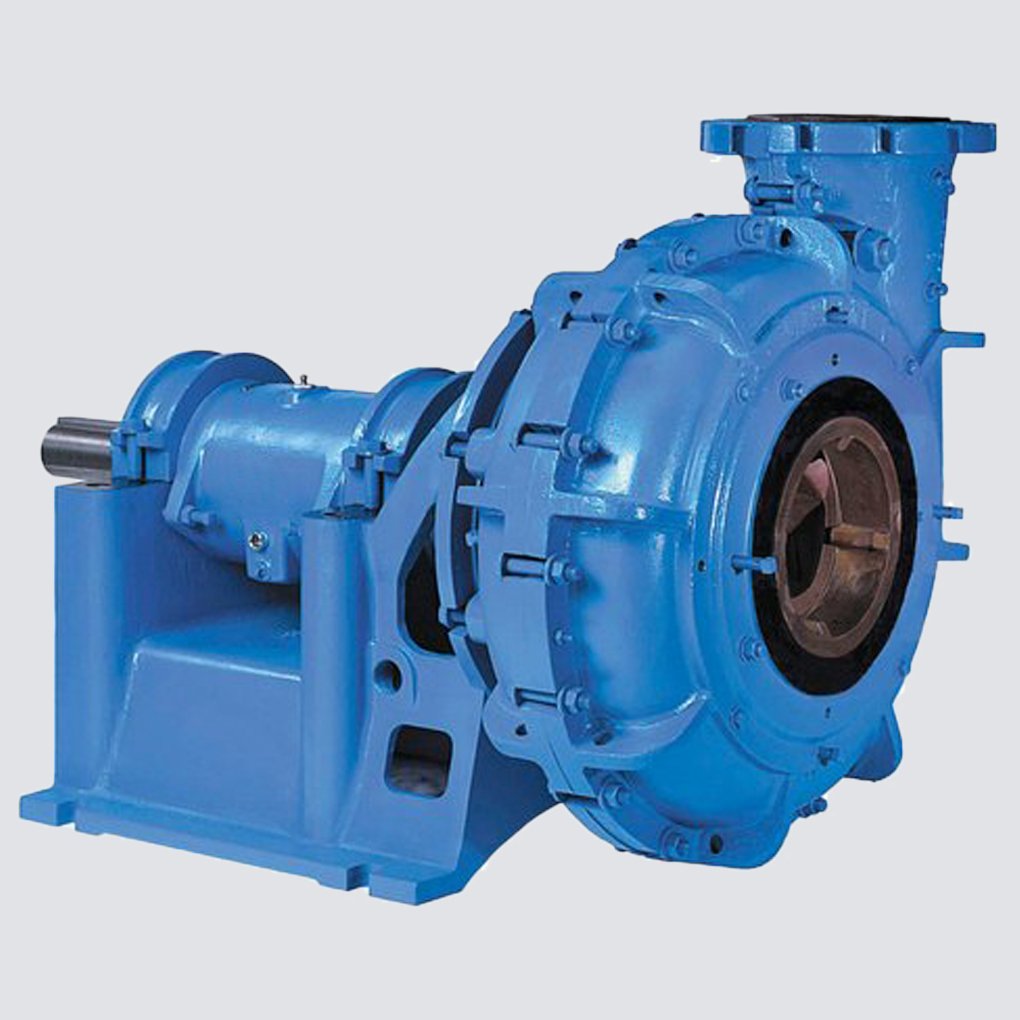

YOUNAI Slurry Pump Series
YOUNAI offers a complete range of slurry pumps for light to heavy-duty applications. Designed with high hydraulic efficiency, they ensure maximum wear life and performance when handling difficult solids.

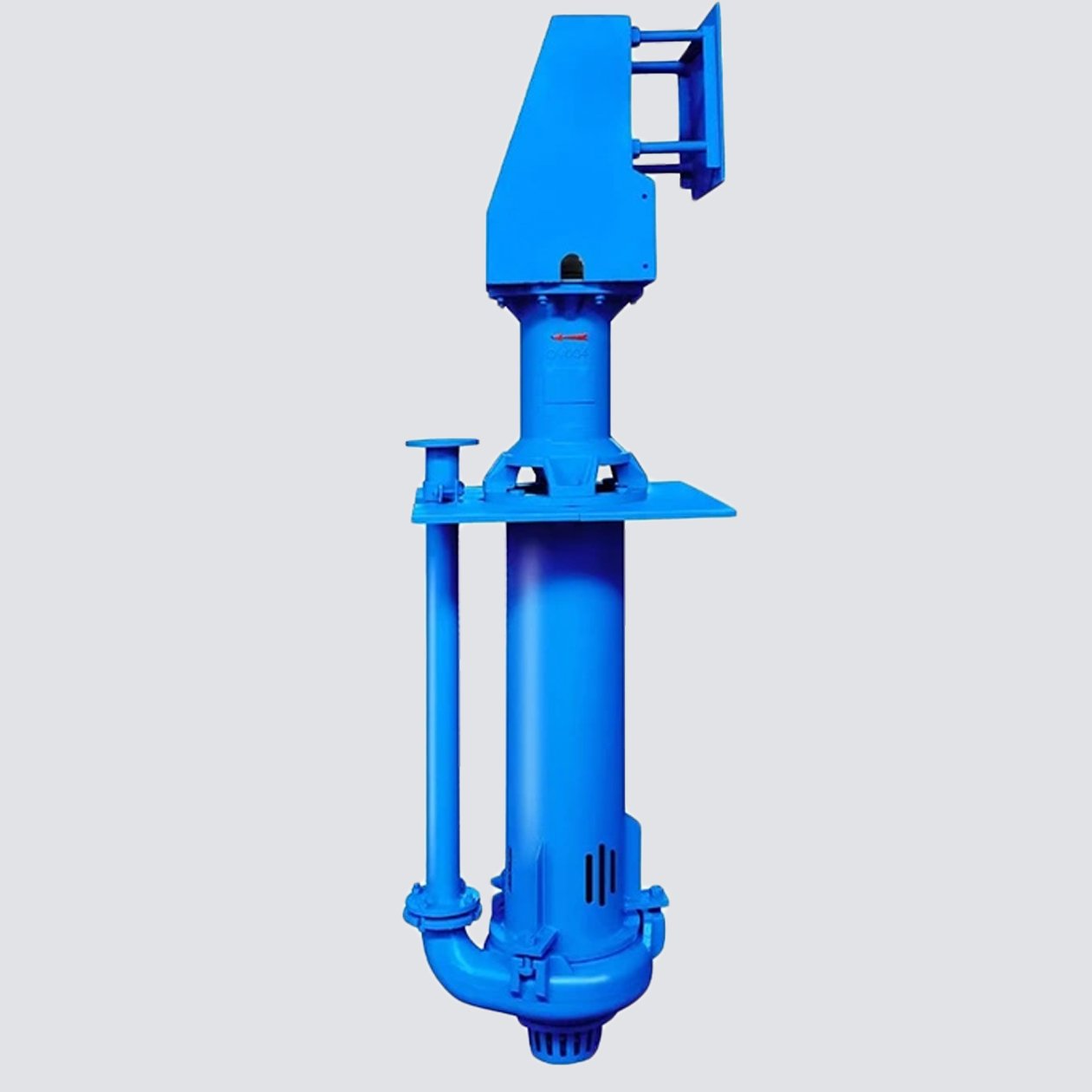

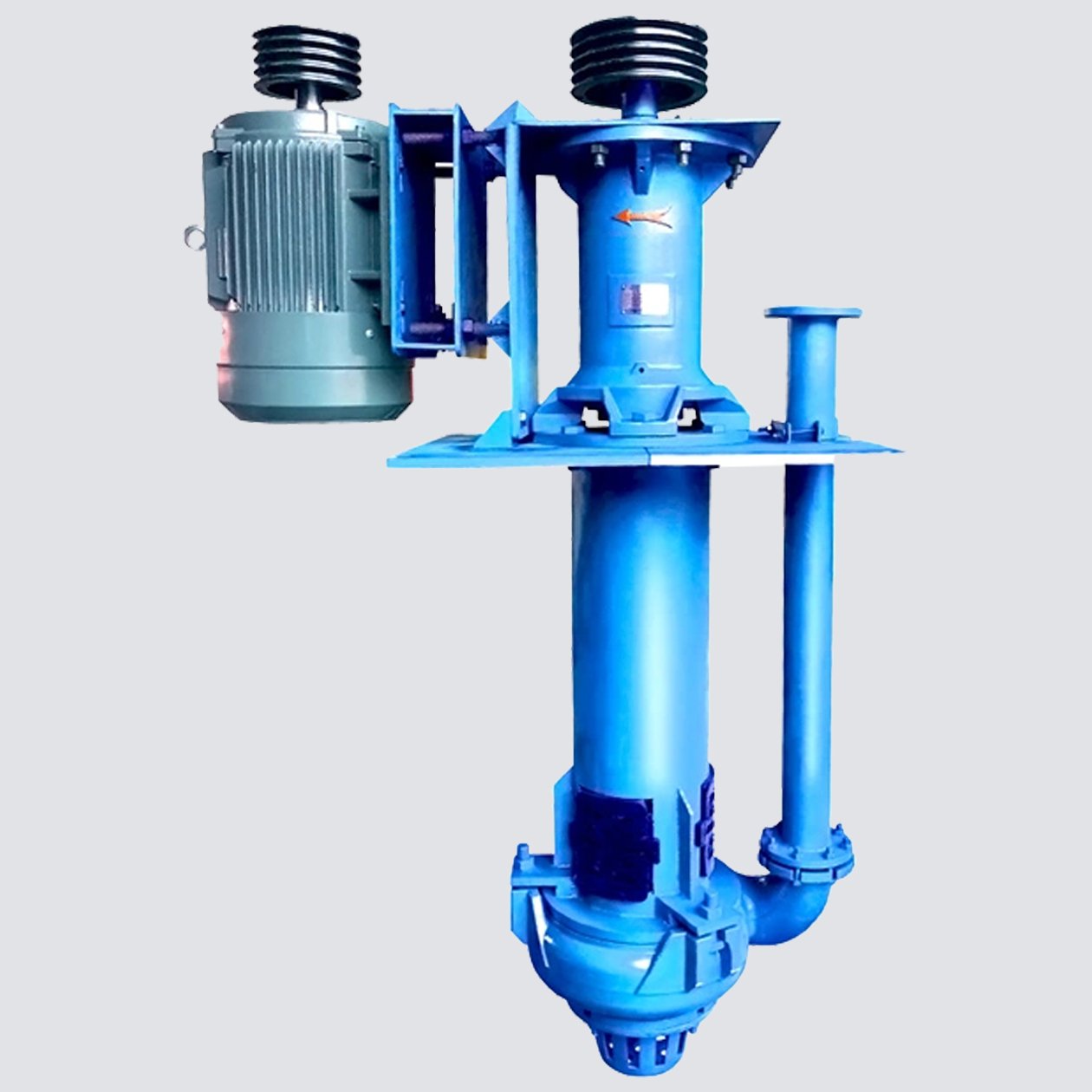

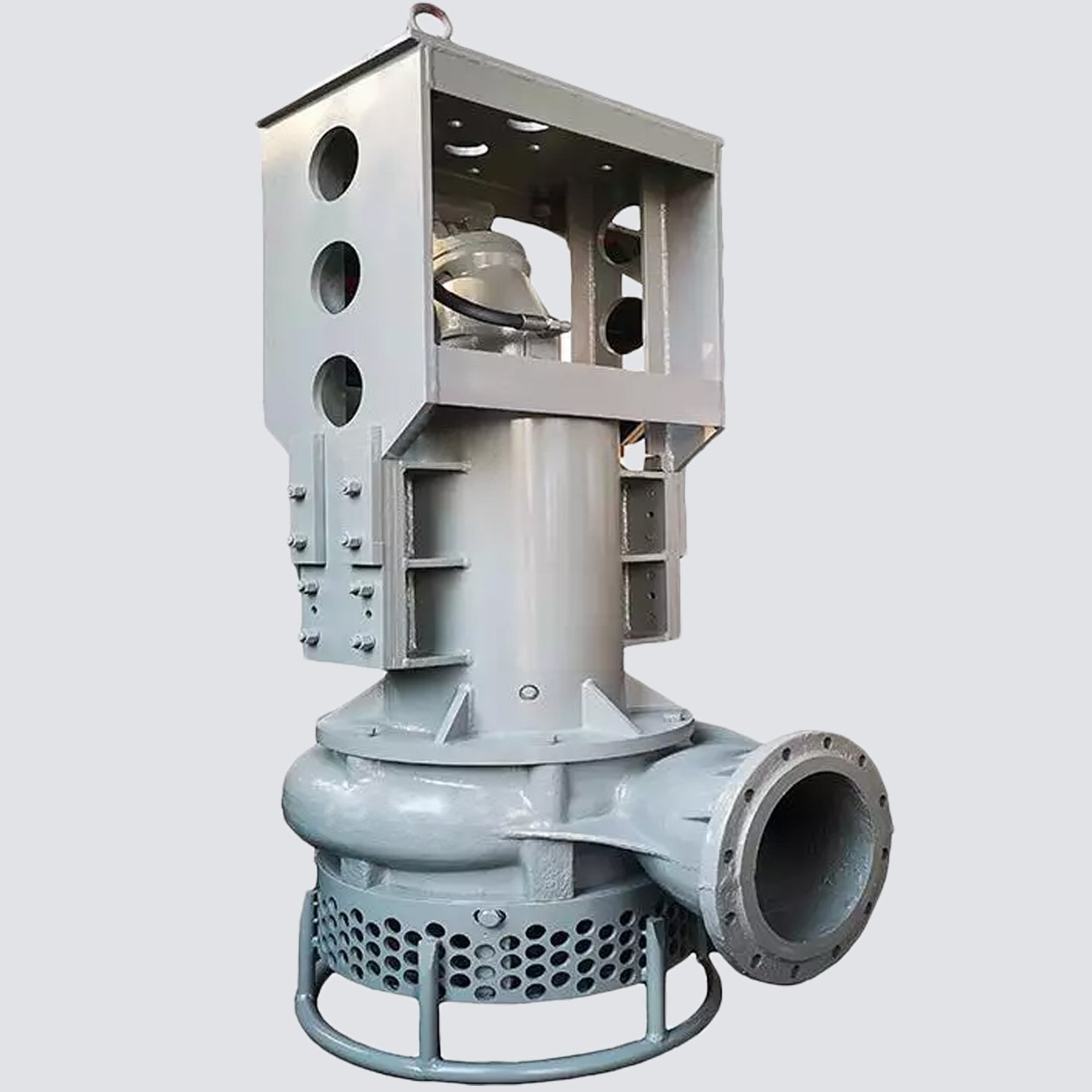

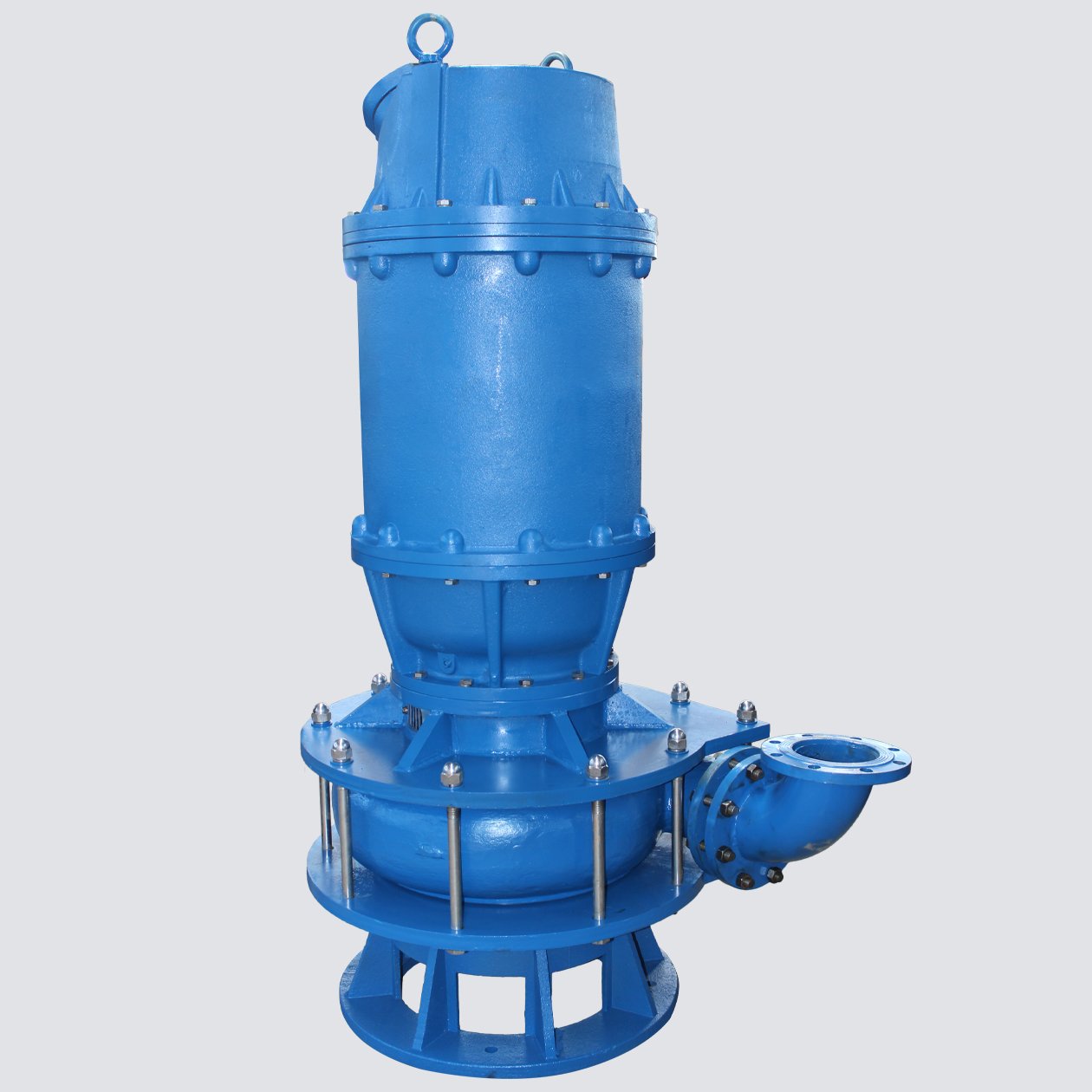

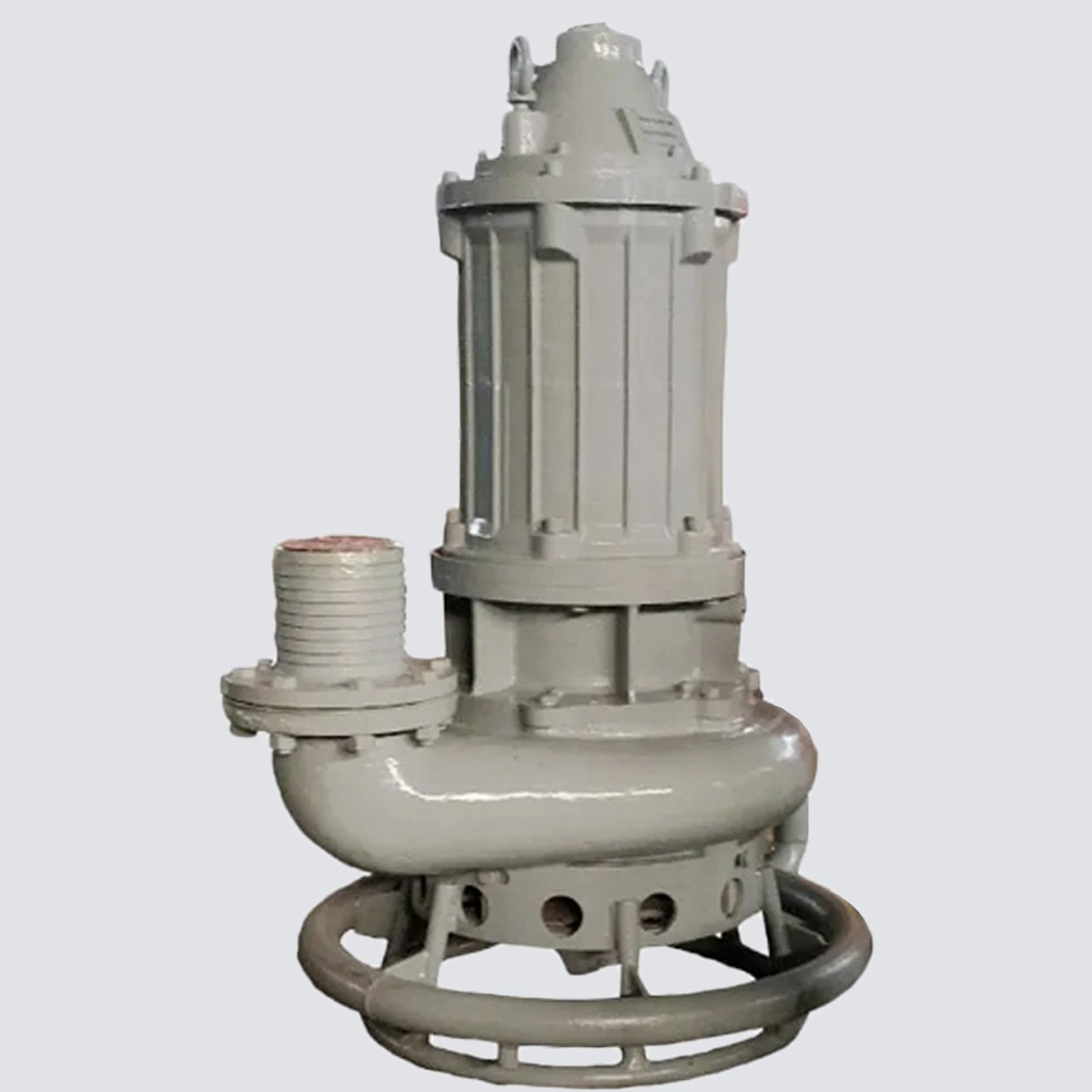

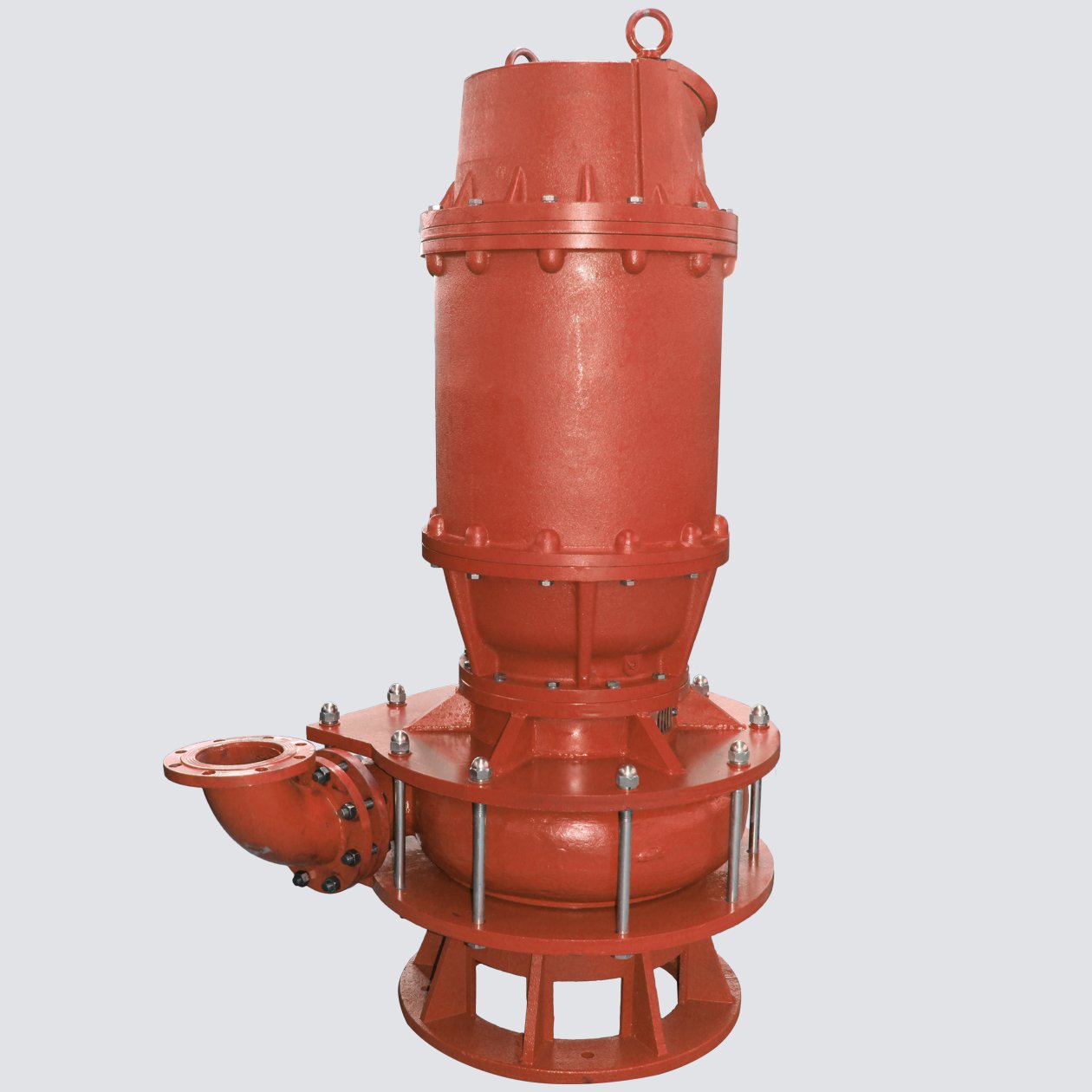

Slurry Pumps for Vertical Installation
To meet a wider variety of slurry handling needs, YOUNAI manufactures vertical-type slurry pumps. They feature fully submersible or semi-submersible operation modes. These pumps efficiently handle slurry with high concentrations of abrasive solids and are widely used in applications including chemical processing, mining, deep pit excavation, and river dredging.

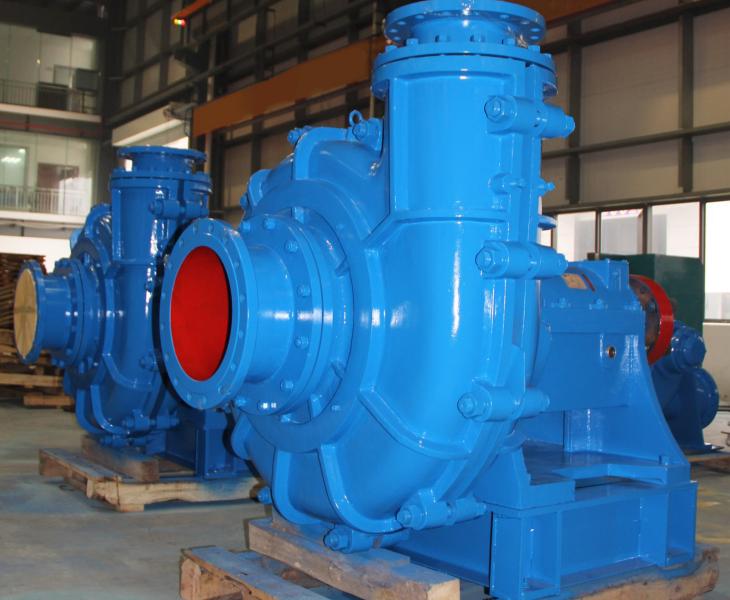

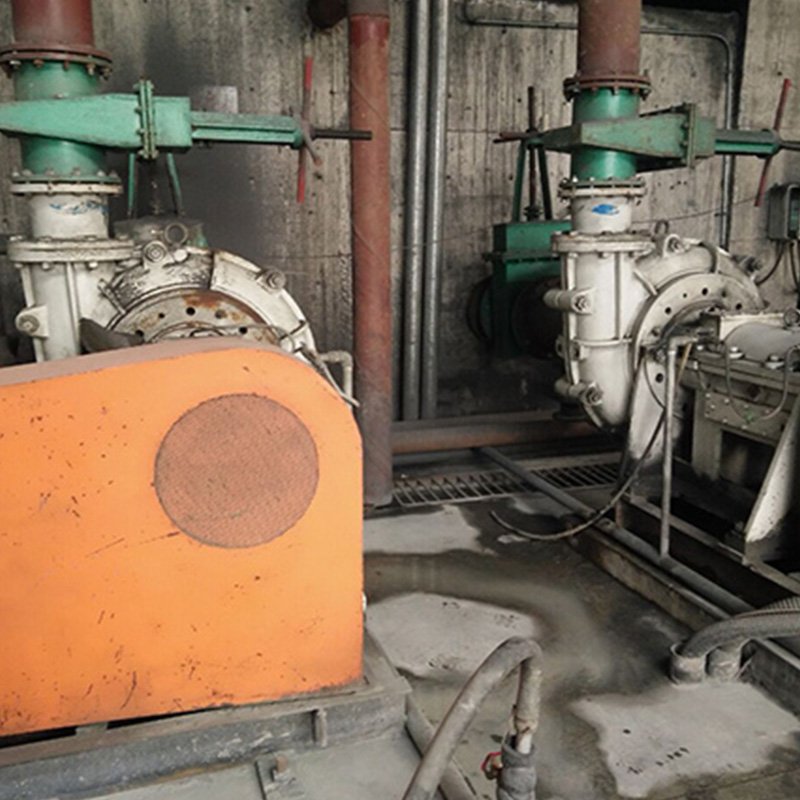

Reliable Slurry Pumps by YOUNAI
We know how to combine solid-liquid mixture flow technology with your demanding needs, ensuring the success of your heavy-duty slurry conveying process while saving energy and over costs.
With deep expertise in durable slurry pump technology, we provide tailored solutions that deliver a high-performing and extended service life. A key benefit is the easier, more cost-effective spare parts replacement that significantly reduces your total cost of ownership.
What You Can Expect from YOUNAI:
- Robust Engineering Design: Featuring a thickened pump shaft, a heavy-duty pump cover, and a hydraulically optimized model, our slurry pumps are engineered to meet the demanding requirements of your heavy-duty slurry transfer process.
- Assured Quality & Reliability: Rigorous testing protocols ensure high operational performance and reliability under the most challenging conditions.
- End-to-End Support: From system design to aftermarket services, we provide comprehensive abrasion- and corrosion-resistant solutions.

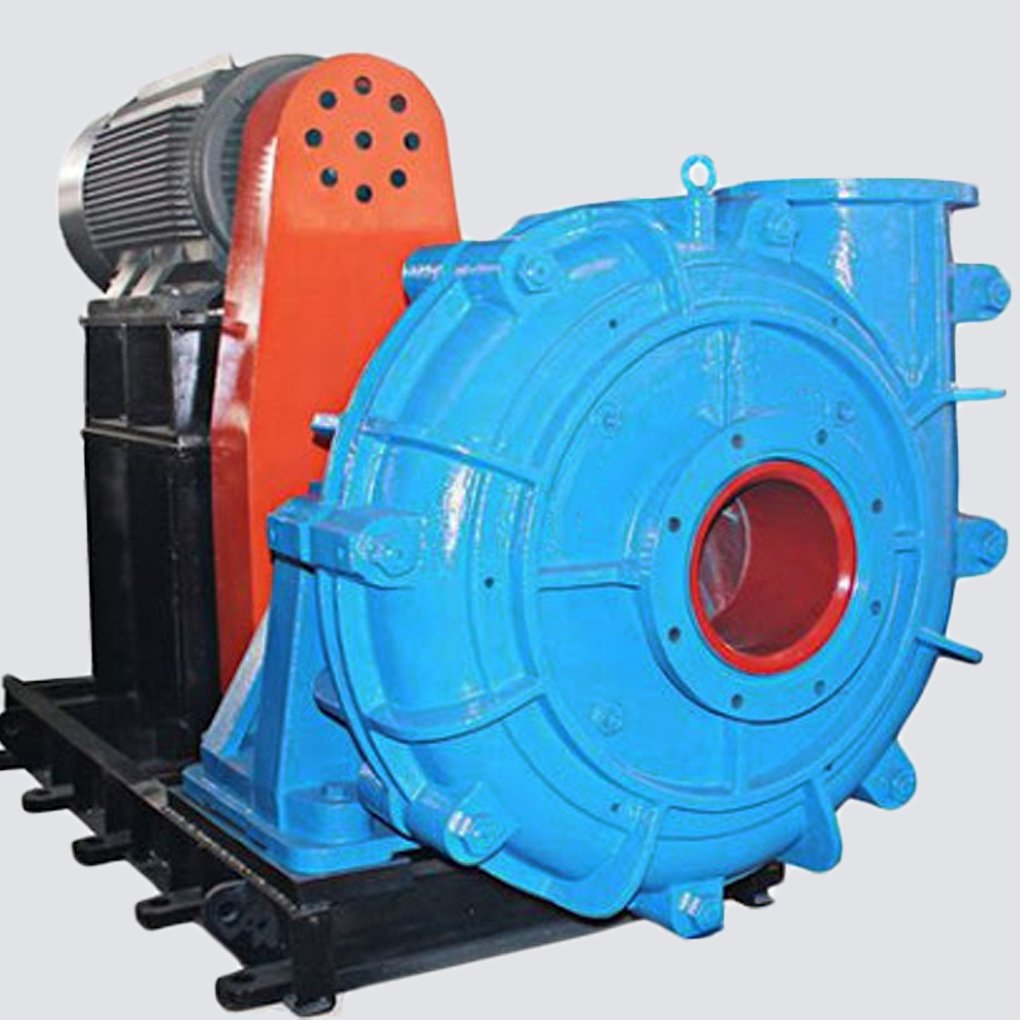

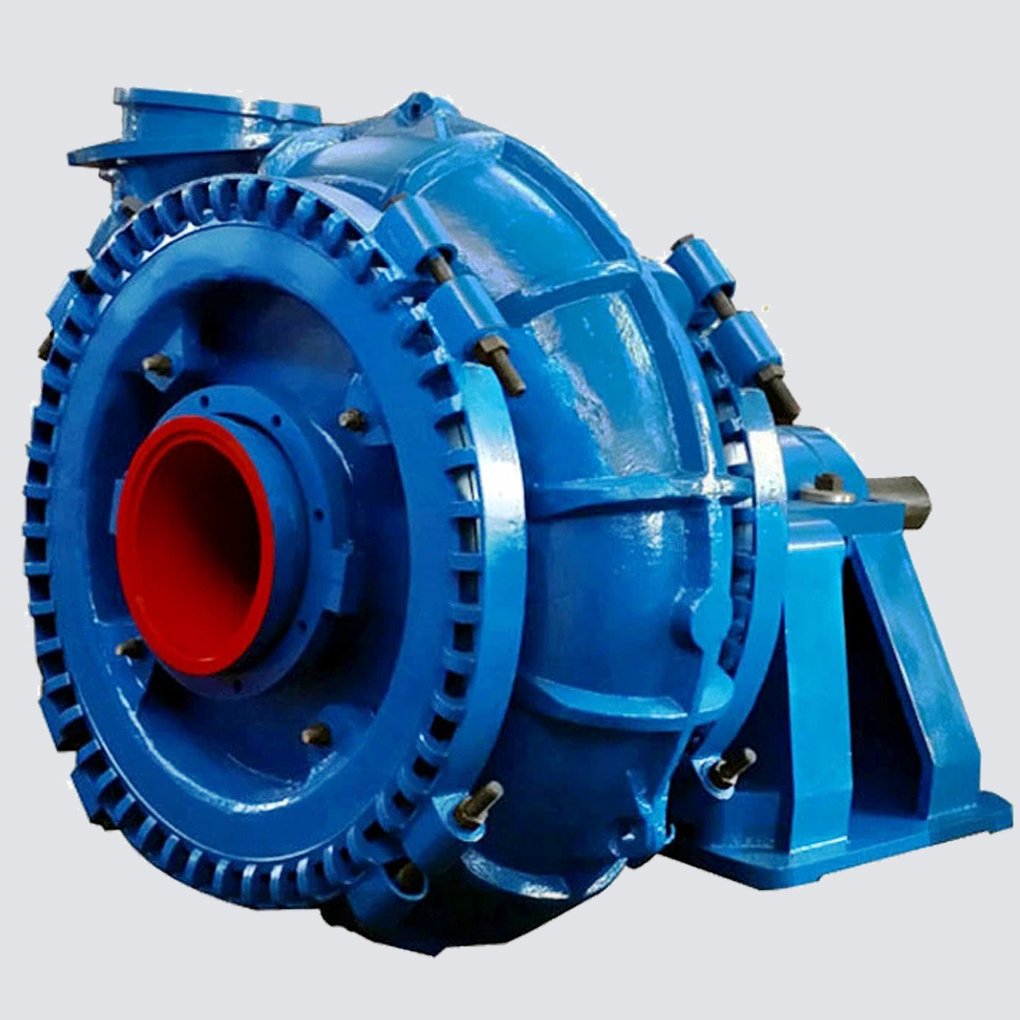

Find the Right Slurry Pump

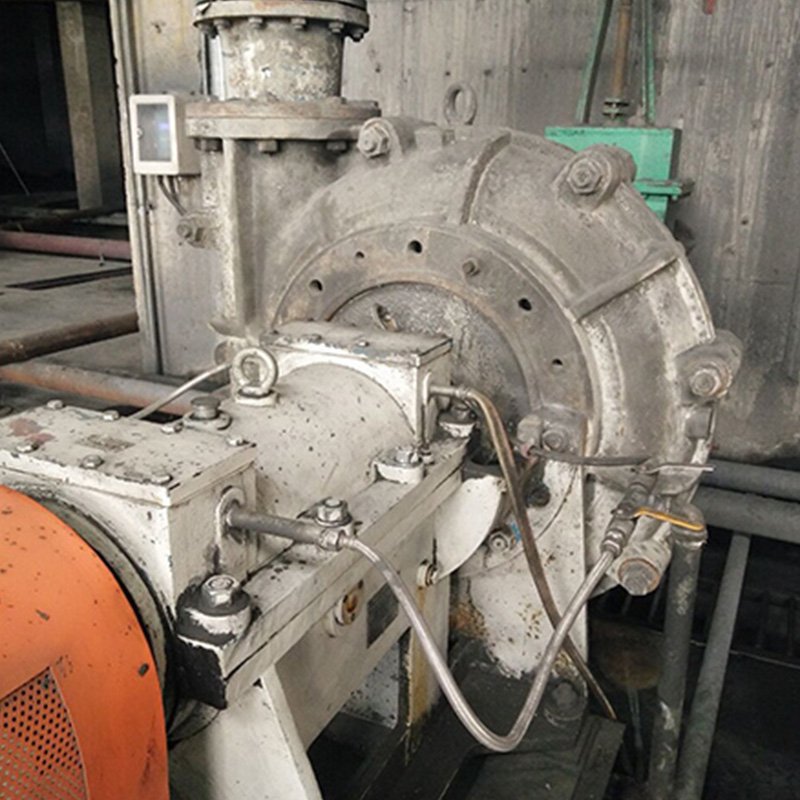

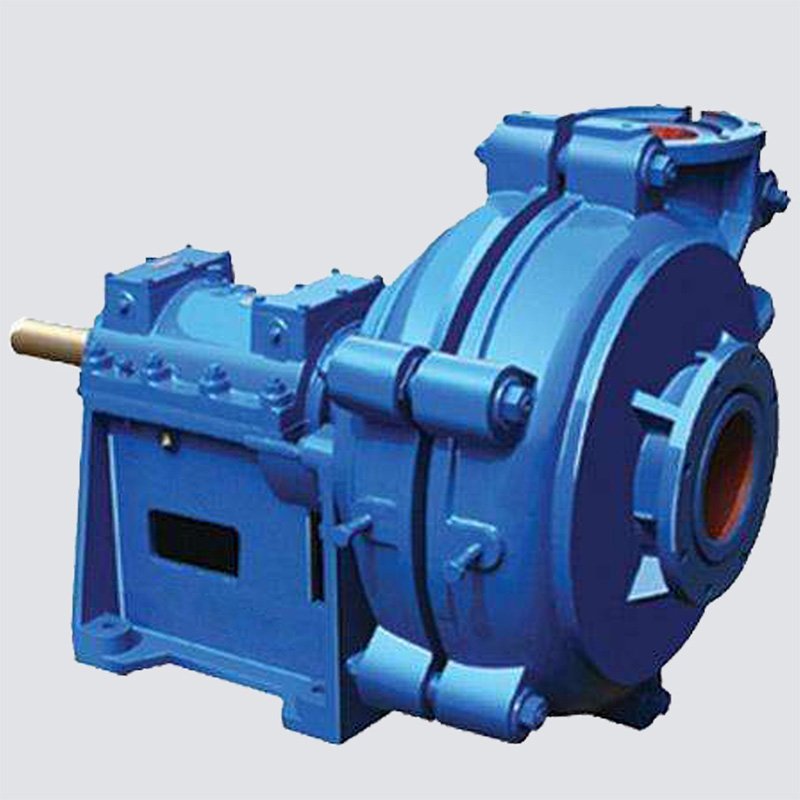

YOUNAI slurry pumps are the ideal solution for handling solid-liquid mixtures. They deliver excellent hydraulic efficiency in pumping two-phase solid-liquid flows, along with superior wear resistance and extended service life, and have numerous references in mining, metals processing, and FGD fields.
Capacity: (120～9900m3/h)
Head: (18～115m)
Max particle diameter: (3～115)mm
Capacity: (320～3900m3/h)
Head: (12～85m)
Range of operating temperature: (-20～180℃)
Why Choose YOUNAI Slurry Pumps

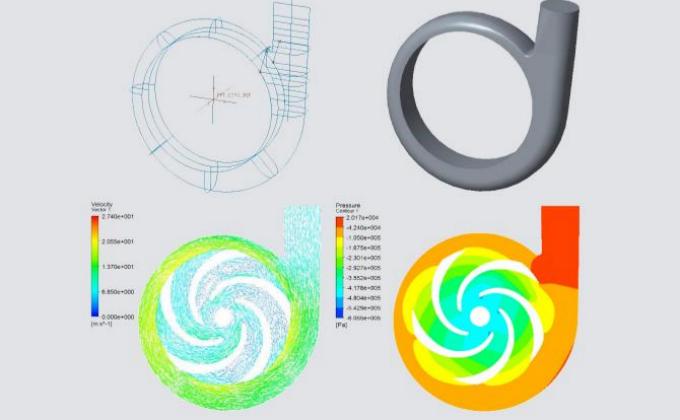

The design of YOUNAl slurry pumps is based on the most advanced theoretical research. We utilize Creo 3.0 for 3Dhydraulic modeling and flow passage optimization of key components like the impeller, volute, and extension sections at the suction and discharge. Further refinement with CF-turbo software reduces hydraulic loss for smoother flow and higher efficiency. Finally, CFD simulations analyze complex internal solid-liquid two-phase flows and provide predicted performance parameters for various solid concentrations.
State-of-the-art composite material technology that solves the challenges of corrosion and abrasion—vacuum‑cast silicon carbide ceramic lining. This composite material handles any environment from pH 1 to 14. Performance is unaffected by chlorides or fluorides in the slurry.

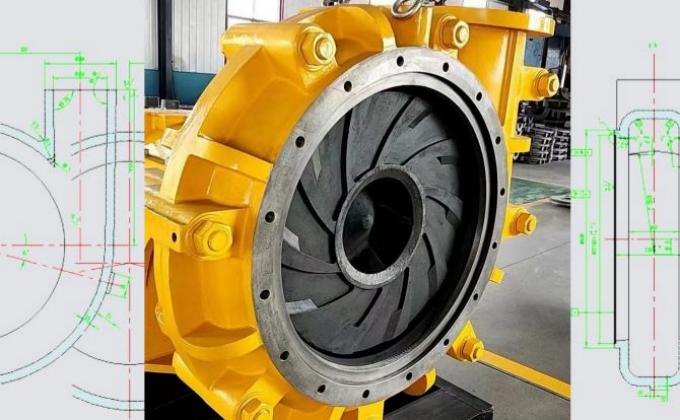

YOUNAl translates advanced design into durable reality through state-of-the-art manufacturing. Our workshop houses precision CNC lathes, GOODWAY mill-turn centers, and massive 5-meter gantry mills for large components. Pump shafts are finished on TSUGAMl automated lines for unmatched consistency.
Our high-quality slurry pumps are supported by a rigorous quality management system with strict process controls. Every critical component is inspected and approved to design specifications using a HEXAGON coordinate measuring machine and 3D laser scanner. Each spare part is assigned a unique code for full traceability and easy replacement.
Every slurry pump undergoes performance testing to ensure it meets your required capacity, head, and temperature parameters.
Customer Testimonials
In our mineral processing plant, we faced severe abrasion challenges with slurry containing 10-12mm particles (20% content) at 40% weight concentration, including broken steel balls at ambient temperature. The previous metal pumps lasted only about 60 days. After upgrading to YOUNAI silicon carbide ceramic heavy-duty slurry pumps, service life now exceeds 14 months.
Reza KhanChief Engineer, Iran Mineral Processing Plant, IranIn our iron-molybdenum ore beneficiation process, the slurry medium has a maximum particle size of 10–13mm (10% content), a median particle size of 5mm, a weight concentration of 55–60%, and a pH of 8.4. The original metal pump had a service life of only about 2 days. After replacing it with the YOUNAI silicon carbide ceramic heavy-duty slurry pump, the service life reached 24 days, which is 12 times that of the original metal pump.
Sofía González MartínezProcurement Manager, Chilean Molybdenum Mining CompanyAt the filter press feeding station in the smelting industry, the working conditions involve a solid content of 30%-40%, containing 20-45 g/L sulfuric acid, a temperature of 70-85°C, and a median particle size of 65 microns. The environment is characterized by acid corrosion, strong abrasion, At the filter press feeding station in the smelting industry, the working conditions involve a solid content of 30%-40%, containing 20-45 g/L sulfuric acid, a temperature of 70-85°C, and a median particle size of 65 microns. The environment is characterized by acid corrosion, strong abrasion,
Amina KasenovaProcurement Manager, Kazakhstan
In our best-selling slurry pump series, the maximum solid particle diameter is 92mm. In mining, they typically process slurry solids ranging from 11mm to 88mm. Should you have any specific requirements, please contact us. Our slurry pumps can be customized and tailored to meet them.
With decades of slurry pump manufacturing experience, YOUNAI offers metal slurry pumps in industry-standard materials, including cast iron (ASTM A48 CL 35 B), chromium iron (ASTM A532 IIIA, Gx100CrMo30-2), and high-chrome alloy. For optimal performance and extended lifespan, we highly recommend our ceramic slurry pumps.
For standard slurry pump models, the typical lead time is 4 weeks. YOUNAI maintains a well-stocked inventory of semi-finished components, which enables shorter delivery time.
For ceramic slurry pumps, the common materials for wetted parts include various silicon carbide ceramics, such as: Silicon Carbide Ceramics, Resin-Bonded Silicon Carbide (SiC), Silicon Nitride-Bonded Silicon Carbide Composite (Si₃N₄-SiC), Reaction-Bonded Silicon Carbide (RB-SiC), Recrystallized Silicon Carbide (R-SiC), Pressureless Sintered Silicon Carbide (SSiC).
The primary measure is selecting materials suited to the operating conditions, such as chrome iron, high-chrome alloys, and silicon carbide ceramic composites. Superior materials ensure outstanding resistance to abrasion, corrosion, and high temperatures in harsh environments. Next, the YOUNAI slurry pump impeller is designed with front and rear expeller vanes, which reduce wear at the suction inlet and help extend mechanical seal life. Finally, a large-diameter, short-overhang pump shaft reduces bending under load. All these features combine to deliver a significantly longer lifespan.
Absolutely. Our slurry pumps can be custom-engineered to meet your specific parameters for capacity, pressure, temperature, solids, PH, viscosity.
A slurry pump is a type of centrifugal pump specifically designed to handle fluids containing a high concentration of solid particles, with wear-resistant performance. Its operating principle is also centrifugal. The commonly referred-to centrifugal pump is primarily used for pumping clean water or fluids with low solid content.
